ICT

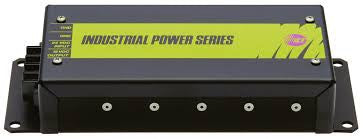

ICT2412-10A 24V - 12V / 10 Amp Power Converter

  • Sale
  • $169.00


ICT2412-10A

24V - 12V / 10 Amp Power Converter

PRODUCT INFORMATION

The ICT2412-10A converter will provide continuous trouble-free power. It is designed for high efficiency and long service life. The rugged case and modular design have proven durable in harsh environments. Extra silicone is used for vibration and moisture resistance. Standard features include: easy access mounting holes, a terminal block connector, current limiting, overvoltage protection, fuse protection, and a high surge capacity

FEATURE HIGHLIGHTS
  • Vibration Resistant
  • Moisture Resistant
  • Rugged Case
  • Fuse Protection
  • No Internal Wiring
  • Overvoltage Protection
  • Current Limiting
  • Terminal Block Output Connector
  • High Efficiency
  • Rack Mounting Option Available
PRODUCT SPECIFICATIONS
Input Voltage Range 20 - 30 VDC
Output Voltage 13.8 VDC +/- 300 mV
Output Current (Continuous) 10.0 Amps
Output Current (Peak) 10.0 Amps
Current Limiting 10.5 Amps +/- 5%
Line Regulation 1.00%
Load Regulation 1.00%
Output Ripple (Max) 10 mV RMS
Overvoltage Protection 16.0 V
Efficiency (Min) 93%
Fuse 10 Amp
Operating Temperature -50°F to 104°F
-46°C to 40°C
Size (L x W x H) 9.5" x 4.1" x 1.77"
Weight 1.69 lbs.



APPROVALS
