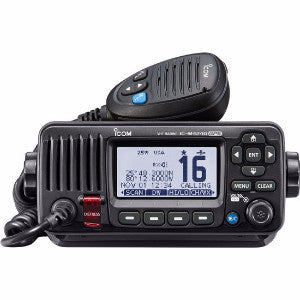

IC-M324 Top Performance, Great Value
Fully featured compact marine radio
Icom Built in GPS for M324G
Icom Icom Marine Family User Interface
Icom Large Dot Matrix Display
Class D DSC
Icom IPX7 Waterproof
Icom NMEA0183 Connectivity
Icom AquaQuake Draining Function


GENERAL Frequency range Tx Rx Ch. 70 156.025–157.425MHz 156.050–163.275MHz 156.525MHz Usable channels USA, CAN, INT, WX channels Type of emission 16K0G3E (FM), 16K0G2B (DSC) Power supply requirement 13.8V DC nominal (11.7–15.9V DC) Current drain (at 13.8V DC) Tx 25W output Rx AF max. 5.5A 1.5A Operating temperature range –20°C to +60°C; –4°F to +140°F Antenna impedance 50Ω (SO-239) Dimensions (W×H×D) (projections not included) 180×82×119.9mm 7.09×3.23×4.72 in Weight (approx.) 1.2kg; 2.65lb NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE TRANSMITTER Output power (at 13.8V DC) 25W, 1W Max. frequency deviation ±5.0kHz Frequency tolerance ±10ppm (–20°C to +60°C) Spurious emissions Less than –70dBc (High) Less than –56dBc (Low) S

RECEIVER Sensitivity Main Ch. 70 –13dBμ typ. (12dB SINAD) –5dBμ emf typ. (1% BER) Squelch sensitivity Less than –10dBμ Adjacent channel Main selectivity Ch. 70 More than 70dB More than 73dBμ emf (1% BER) Spurious response Main Ch. 70 More than 70dB More than 73dBμ emf (1% BER) Intermodulation Main Ch. 70 More than 70dB More than 68dBμ emf (1% BER) Hum and noise More than 40dB Audio output power (at 10% distortion, 4Ω load) 4.5W typical Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation. Applicable IP Rating Ingress Protection Standard Water IPX7 (Waterproof protection)
