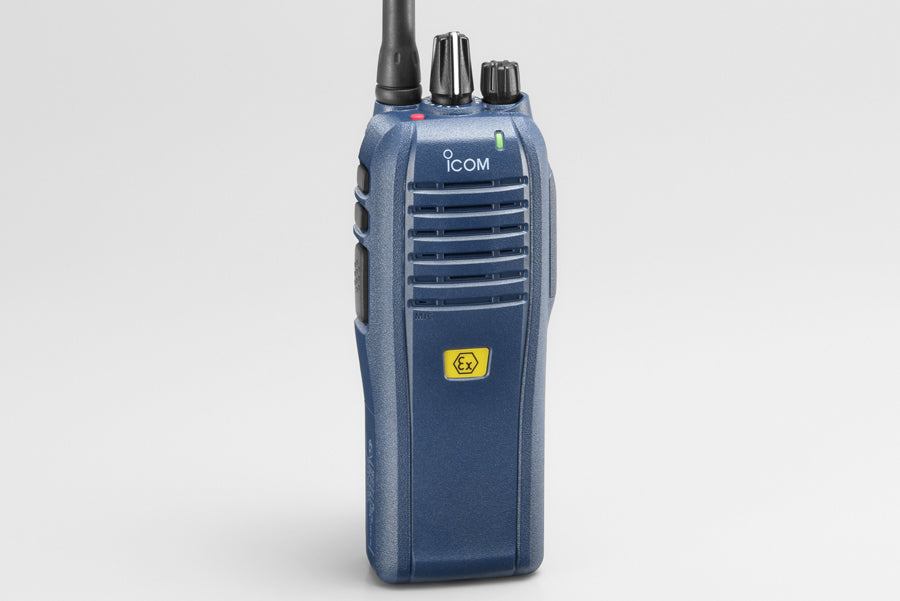

iCom CSA Approved (Intrinsically safe) Handheld UHF Digital - F3203DEX / F4203DEX

Product Currently on Back Order
Call for ETA : 604 850 0215

IEC Certifications EC Certifications

Mining : Ex ib I Mb
Gas : Ex ib IIC T4 Gb
Dust : Ex ib IIIC T110°C Db
IEC 60079-0 (2011), IEC 60079-11 (2011)

ATEX Certifications TEX Certifications

Mining : I M2 Ex ib I Mb Gas : II 2G Ex ib IIC T4 Gb
Dust : II 2D Ex ib IIIC T110°C Db
EN 60079-0 (2012), EN 60079-11 (2012)

IP67 Dust-tight & Waterproof Protection

P67 Dust-tight & Waterproof Protection The IC-F3201DEX/F4201DEX provides rugged protection against dust and water that is equivalent to IP67. The IC-F3201DEX/F4201DEX can withstand 1m depth of water for 30 minutes and its dust-tight construction shuts out powder dust, sand and other objects.

IDAS™Digital Mode Operation Digital Mode Operation

The IC-F3201DEX/F4201DEX provides can program NXDN™ Type-D single-site trunking and digital conventional as well as analog mode per channel. The following digital features are programmable.

• Individual/Group calls
• Block decode
• Radio check (RX)
• Stun/kill/revive (RX)
• Call alert (RX)
• Remote monitor (RX)
• Emergency (TX)
• Digital voice scrambler (15-bit)
• Power ON/OFF status call (TX)
• RAN (Radio Access Number)
• Voting scan for multi-site conventional operation TX: Transmit, RX: Receive

Analogue Mode Compatible

The IC-F3201DEX/F4201DEX has built-in 5-Tone, 2-Tone, CTCSS and DTCS signaling capability for analogue mode group communication and selective calling. The lone worker and man down functions automatically send an emergency signal to assist in worker safety. The radio is perfect for use as an analogue transceiver ready for future digital migration.

Other Features

• 16 memory channels with channel announcement function
• MDC 1200 PTT ID and emergency transmission
• DTMF autodial
• Three programmable buttons (including emergency red button)
• Low electrical resistivity body; Carrying case is not required
• 19.5–21 hours* operating time with BP-277EX (* 5:5:90 duty cycle with Power save.)
• Optional waterproof speaker-microphone, HM-203EX


Intrinsically Safe IDAS VHF/UHF Portables
IP67 Dust-tight & Waterproof Protection
IDAS Digital Mode Operation
Analogue Mode Compatible
16 Memory Channels with Channel Announcement Function
Three Programmable Buttons (including emergency red button)
2-tone, 5-tone, CTCSS and DTCS built-in for analog mode
Low Electrical Resistivity Body
