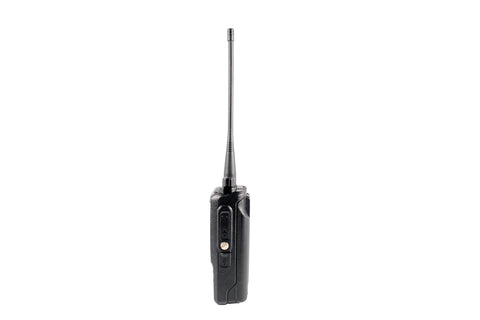

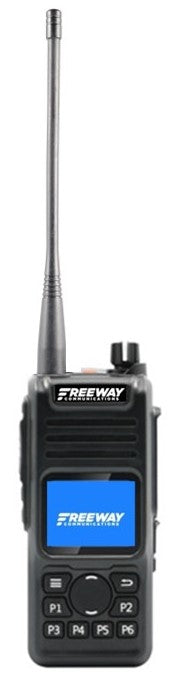

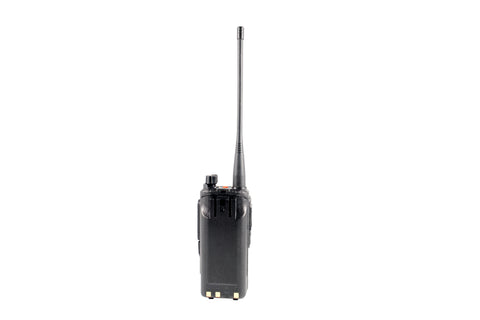

FW-2602D - DMR UHF Handheld Radio with Display
DMR stands for Digital Mobile Radio - an open digital radio standard. DMR has received global recognition as a technology that combines voice, data, features and applications.
Thanks to the DMR standard, Freeway Communications DMR radios work with any other compliant system
The FW-2602D DMR radios are the next-generation in creative style and functionality that elevates the industry standard in professional two-way radios. The FW-2602D is the new state-of-the-art in digital radio communications, providing a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness.
The FW-2602D features a 1.8" TFD-LCD display and limited keypad that support a wide variety of functions, a Lithium Ion battery, GPS, and industry-leading audio performance.
The FW-2602Ds radios empower employees in customer service or severe working environments with efficient and reliable communications.
Built for the real world
EASY TO USE
The FW-2602D DMR radios are built for the real world - designed for the people using them. They often require minimal training and are intuitive to use.
STYLISH AND ROBUST
Yes, our FW-2602D look good, but they're also built to last. All of our radios take the rough with the smooth, helping you communicate wherever you go.
Common Users
- Unique for: security guard, construction site, government, bank, hospital, restaurant, hotel, university, international institutions
- Popular for: airport, railway, army, rescue, police, outdoor adventure, logistics, taxi, truck, camping, traveling, big shopping mall, big hotel and outdoor events
Specifications：
|
GENERAL |
||
|
Frequency Range |
UHF: 400-470MHz |
|
|
Channel Number |
64 |
|
|
Channel Space |
25 /12.5KHz |
|
|
Frequency Stability |
±0.5 ppm |
|
|
Channel Capacity |
200 |
|
|
Zone Capacity |
16 |
|
|
TRANSMITTER |
||
|
Wide band(25K) |
Narrow band(12.5K) |
|
|
Power Output |
H:4W L:2W |
|
|
Modulation |
16KΦF3E |
11KΦF3E |
|
Modulation Limiting |
±5KHz |
±2.5KHz |
|
Spurious Emission |
≤-36dBm |
≤-36dBm |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Audio Distortion |
≤5% |
|
|
RECEIVE |
||
|
Wide band(25K) |
Narrow band(12.5K) |
|
|
RF Sensitivity Analog |
0.22uv (12db SINAD) |
|
|
RF Sensitivity Digital |
0.22uV /BER 5% |
|
|
Adiacent Channel Selectivity |
≥60dB |
≥55dB |
|
Intermodulation Rejection |
≥65dB |
≥60dB |
|
Spurious Response |
≥65dB |
≥65dB |
